Description

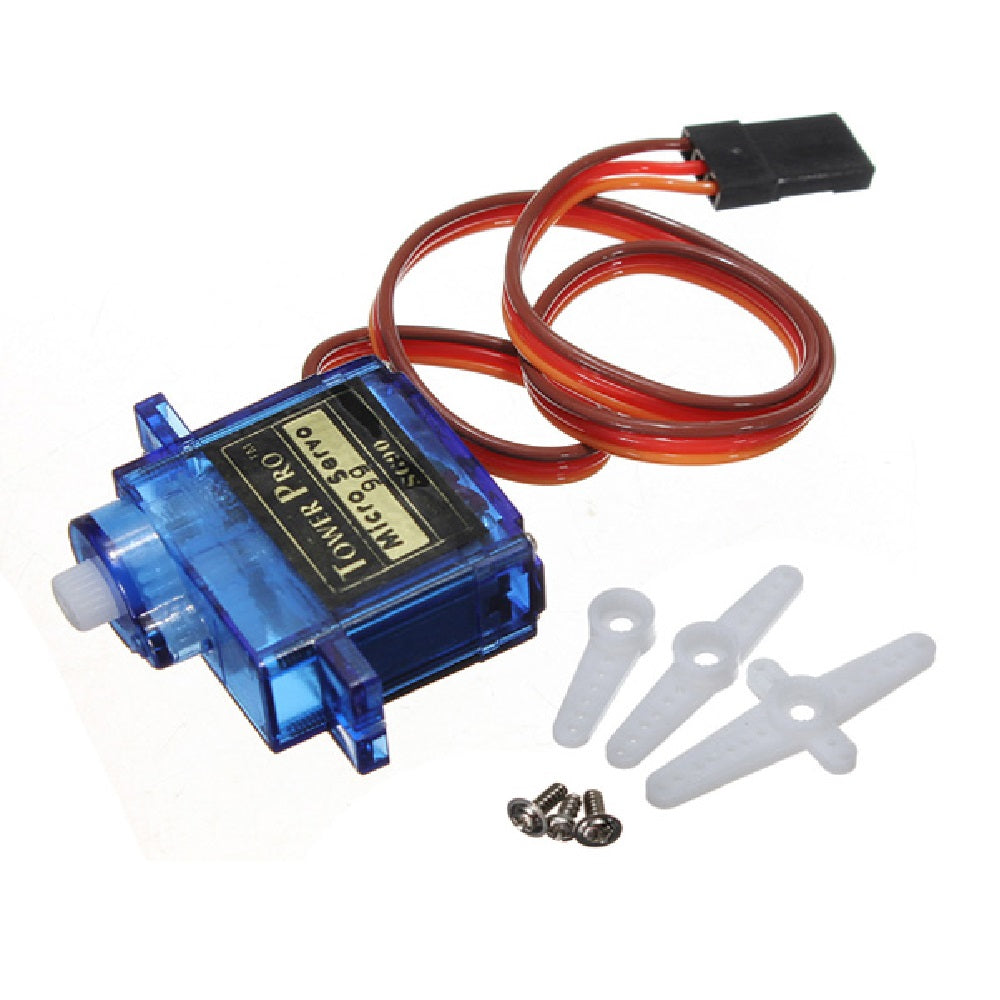

gear motor servo TowerPro SG90 Continuous Rotation 360 Degree Servo Motor – ControllersTech®Description Specifications Box Content Downloads More Info Tower Pro SG90S is a micro servo motor with plastic gear. This small and lightweight servo comes with high output power, thus ideal for RC Airplane, Quadcopter or Robotic Arms. Servo can rotate complete 360 degrees, and works different from the standard kinds. You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without
Tower Pro SG90S is a micro servo motor with plastic gear. This small and lightweight servo comes with high output power, thus ideal for RC Airplane, Quadcopter or Robotic Arms. Servo can rotate complete 360 degrees, and works different from the standard kinds. You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. It comes with a 3 horns (arm).
This TowerPro SG90 Continuous Rotation 360 Degree Servo Motor is special among all the available servo motors because its operation is very different from that of a standard servo. As instead of going to a specified angle, this servo will be static at a 1.5ms pulse, a longer pulse gives forward rotation and a shorter pulse give backward rotation.
Features:
- Operating Voltage: 4.8V to 6V (Typically 5V)
- Max Stall Torque: 1.7 kg-cm
- Operating speed : 120 RPM @ 5V
- Gear Type: Plastic
- Rotation : Continuous 360°
- Pin Definition: GND,VCC,SIGNAL
Applications:
- Robotics
- Conveyor Belts
- Camera Auto Focus
- Solar Tracking System
| Input Voltage | 4.8V ~ 6V |
| Dead band width | 5us |
| Operating speed | 120RPM@5V |
| Stall torque | 1.7kgfcm |
| Current (idle) | 10mA (typical) |
| Current (typical during movement) | 100-250mA |
| Current (stall) | 300mA |
| Interface | PWM |
| Number of Pins | 3 (VCC,GND,SIGNAL) |
| Product Dimensions | 23 x 12 x 26mm |
| Product Weight | 20 grams |
Country of origin : China
- 1x Tower Pro SG90S Continuous Servo
- MotorSet of Horns: One Point, Two Point and Four Point
- 1 x Set of Screws
